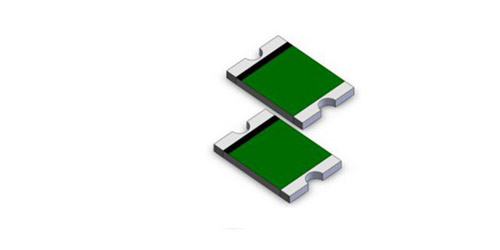

SMD2920 patch self recovery fuse series products
SMD2920 patch fuses: patch type, lead free, coil packaging since the recovery of the fuse, applied to high density circuit board, working current: 0 0A 3-3 working voltage: 6-60V, working temperature: -85.

SMD2920 package series patch self recovery fuse:
SMD2920-030, SMD2920-050, SMD2920-075, SMD2920-100, SMD2920-125, SMD2920-150, SMD2920-185, SMD2920-200, SMD2920-250, SMD2920-260, SMD2920-300, SMD2920-300/16V, SMD2920-300/, V, SMD2920-250/24V.

SMD2920 patch fuse series symbol definition:
The maximum voltage of Vmax:WHSMD under the blocking state.
Imax:WHSMD can withstand the maximum current.
Maximum operating current of Ih:TGSMD at 25.
The minimum current of It:TGSMD starting protection at 25.
Power consumption of Pd:TGSMD in static air at 25.
Rmin:TGSMD in the initial minimum resistance before work.
After R1max:TGSMD reflow, the maximum resistance value of 1 hours after cooling at 25.

　　Want to understand the SMD2920 chip fuse series products more detailed recommended reading: SMD2920 package series http://www.dr-logistic.com/489/
