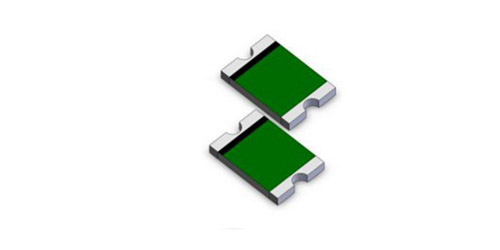

SMD1210 patch self recovery fuse series products
SMD patch fuses: patch type, lead free, coil packaging since the recovery of the fuse, applied to high density circuit board, working current: 0 0A 1-3, working voltage: 6-60V, working temperature: -85.

SMD1210 package series patch self recovery fuse:
SMD1210-005, SMD1210-010, SMD1210-020, SMD1210-035, SMD1210-050, SMD1210-075, SMD1210-110, SMD1210-150, SMD1210-175, SMD1210-200.,

SMD1210 patch fuse series symbol definition:
The maximum voltage of Vmax:WHSMD under the blocking state.
Imax:WHSMD can withstand the maximum current.
Maximum operating current of Ih:TGSMD at 25.
The minimum current of It:TGSMD starting protection at 25.
Power consumption of Pd:TGSMD in static air at 25.
Rmin:TGSMD in the initial minimum resistance before work.
After R1max:TGSMD reflow, the maximum resistance value of 1 hours after cooling at 25.

　　Want to understand the SMD1210 series chip fuse products more detailed recommended reading: SMD1210 package series http://www.dr-logistic.com/385/
