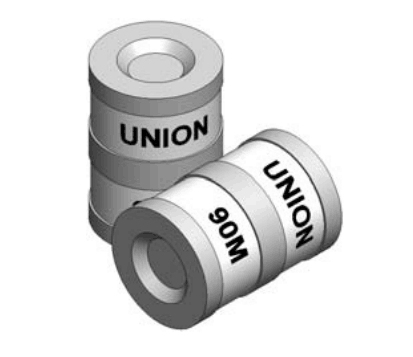

3R-6 Package Series, The gas discharge tube

You are here：Home >> Products >> Gas Discharge Tubes >> 3R-6 Package Series,...

   　Size: 6 * 8.5mm
   　Pulsed discharge current 10kA
   　Operating voltage: 75V, 90V, 150V, 230V, 250V, 300V, 350V, 420V, 470V, 600V

Part number	DC spark-over Voltage	Impulse spark-over Voltage	Impulse Discharge current			AC discharge current	Electrode Capacitance	Insulation resistance	PDF下載
Part number	100V/S	1KV/μS	8/20μs ±5 times	8/20μs 1 times	10/1000μS 100A	1S,5 times	1MHz	Insulation resistance	PDF下載
3R075M6	75V±20%	<600V	5KA×2	10KA×2	300 times	5A×2	<1.5pF	>1G Ω
3R090M6	90V±20%	<600V	5KA×2	10KA×2	300 times	5A×2	<1.5pF	>1G Ω
3R150M6	150V±20%	<600V	5KA×2	10KA×2	300 times	5A×2	<1.5pF	>1G Ω
3R230M6	230V±20%	<700V	5KA×2	10KA×2	300 times	5A×2	<1.5pF	>1G Ω
3R250M6	250V±20%	<700V	5KA×2	10KA×2	300 times	5A×2	<1.5pF	>1G Ω
3R350M6	350V±20%	<900V	5KA×2	10KA×2	300 times	5A×2	<1.5pF	>1G Ω
3R420M6	420V±20%	<1000V	5KA×2	10KA×2	300 times	5A×2	<1.5pF	>1G Ω
3R470M6	470V±20%	<1000V	5KA×2	10KA×2	300 times	5A×2	<1.5pF	>1G Ω
3R600M6	600V±20%	<1200V	5KA×2	10KA×2	300 times	5A×2	<1.5pF	>1G Ω
