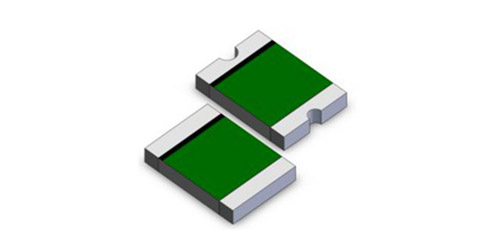

SMD1812 patch self recovery fuse series products
SMD1812 patch self recovery fuse: patch type, lead free, coil packaging since the recovery of the fuse, applied to high density circuit board, working current: 0 0A 1-3 working voltage: 6-60V operating temperature: -40~85.

SMD1812 package series patch self recovery fuse:
SMD1812-010, SMD1812-014, SMD1812-020, SMD1812-030, SMD1812-050, SMD1812-050/33V, SMD1812-050/60V, SMD1812-075, SMD1812-110, SMD1812-110/16V, SMD1812-110/33V, SMD1812-125, SMD1812-150, SMD1812-150/16V, SMD1812-160, SMD1812-200, SMD1812-260, SMD1812-300, SMD1812-350.

SMD1812 patch self recovery insurance series wire symbol definition:
The maximum voltage of Vmax:WHSMD under the blocking state.
Imax:WHSMD can withstand the maximum current.
Maximum operating current of Ih:TGSMD at 25.
The minimum current of It:TGSMD starting protection at 25.
Power consumption of Pd:TGSMD in static air at 25.
Rmin:TGSMD in the initial minimum resistance before work.
After R1max:TGSMD reflow, the maximum resistance value of 1 hours after cooling at 25.
